Model: XFLO (Inline Mixed Flow Fan)

Model: XFLO (Inline Mixed Flow Fan)
In stock Sold out Sold out (Backorder available)
Our XFLO range is quiet, powerful and high performance. Mixed Flow fans are less bulky than large in-line centrifugal fans and can be installed in loft spaces or service shafts. This range is specially designed for residential applications and hydroponics. It is also supplied with a mounting bracket for quick and easy installation on wooden joists and panels. XFLO fans are suitable for removing damp moist air, odours and airborne pollutants from bathrooms, en-suites, shower rooms, utilities and Hydroponic Rooms.

Speeds - 2 Speeds
1 Year Warranty


UK Plug - Standard Model Only

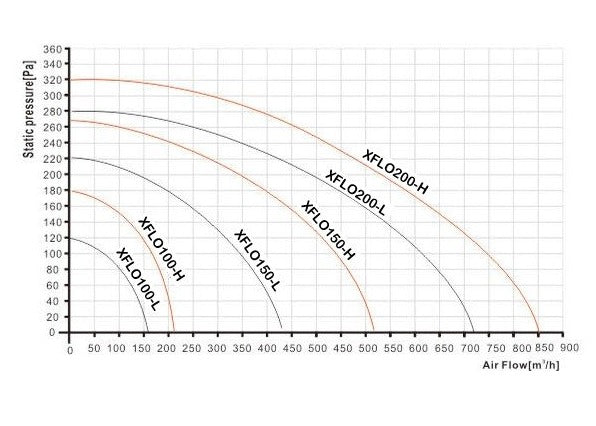

Air Flow (Free Air)
100mm (4") - 220m3/hr (61l/s)
125mm (5") - 330m3/hr (92l/s)
150mm (6") - 530m3/hr (147l/s)
200mm (8") - 820m3/hr (228l/s)
250mm (10") - 1405m3/hr (390l/s)
315mm (12") - 2206m3/hr (612l/s)


Sizes/Types

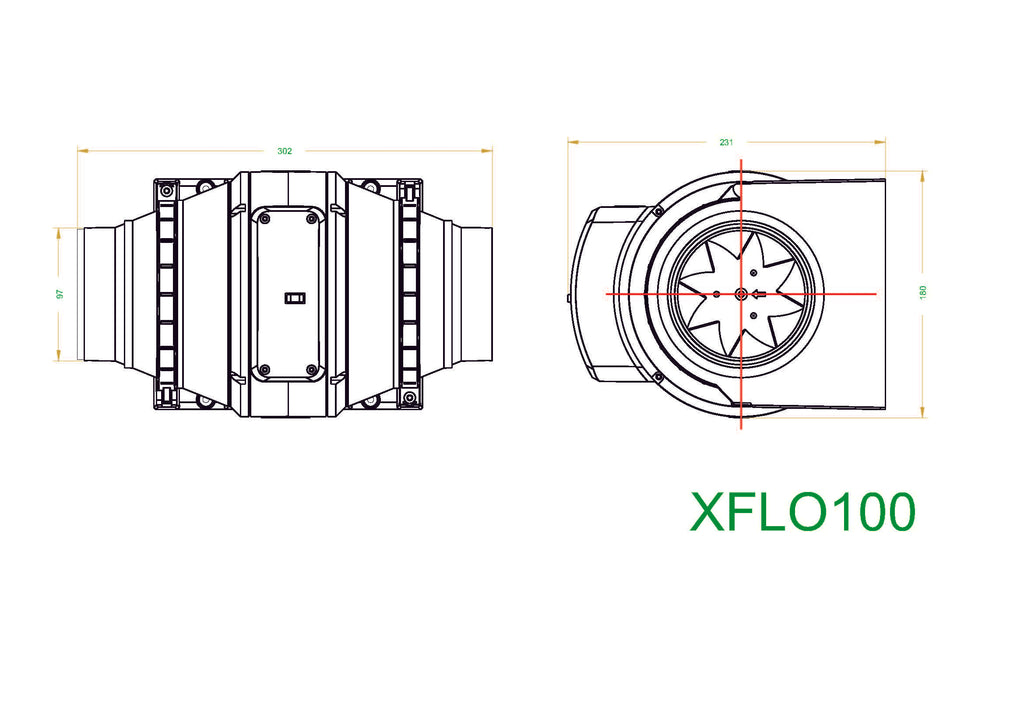

100mm (4") - XFLO100

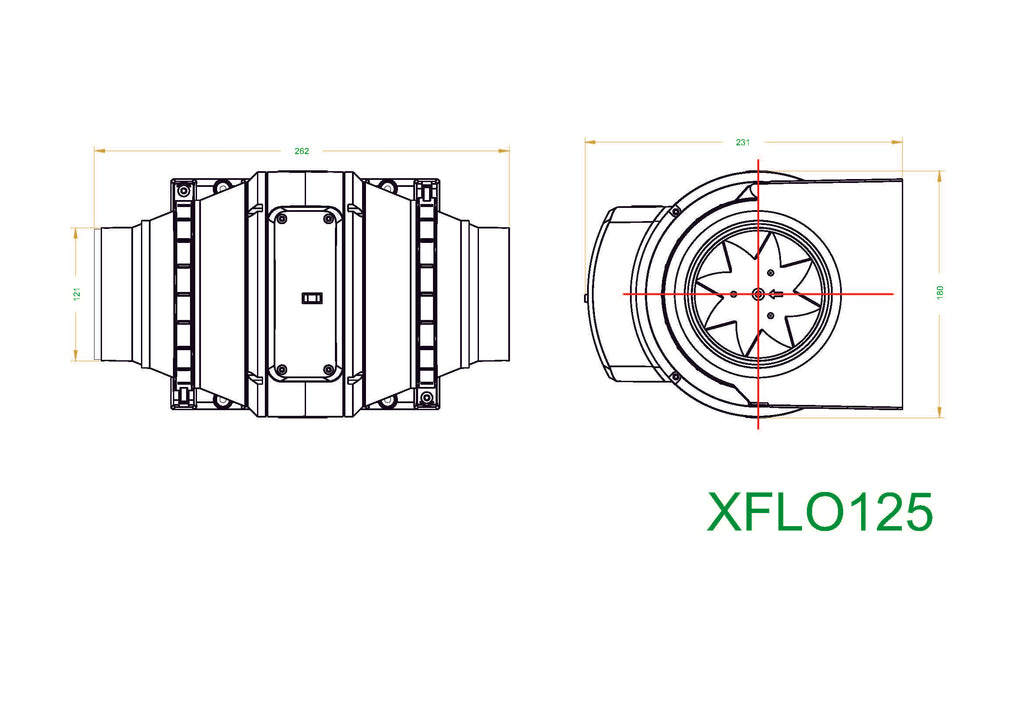

125mm (5") - XFLO125

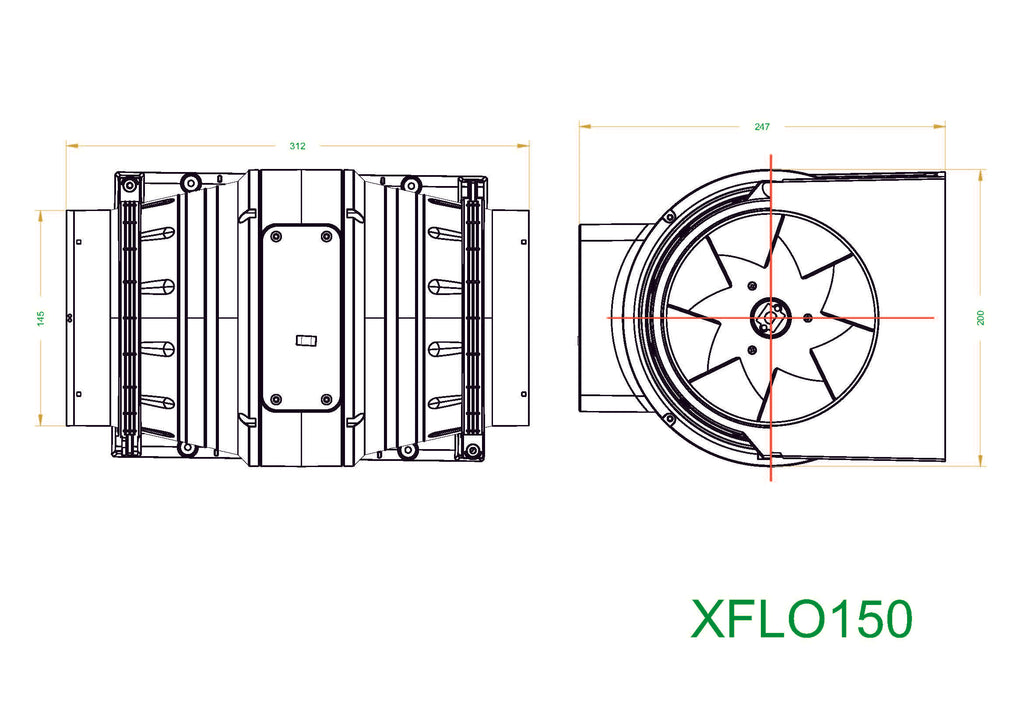

150mm (6") - XFLO150

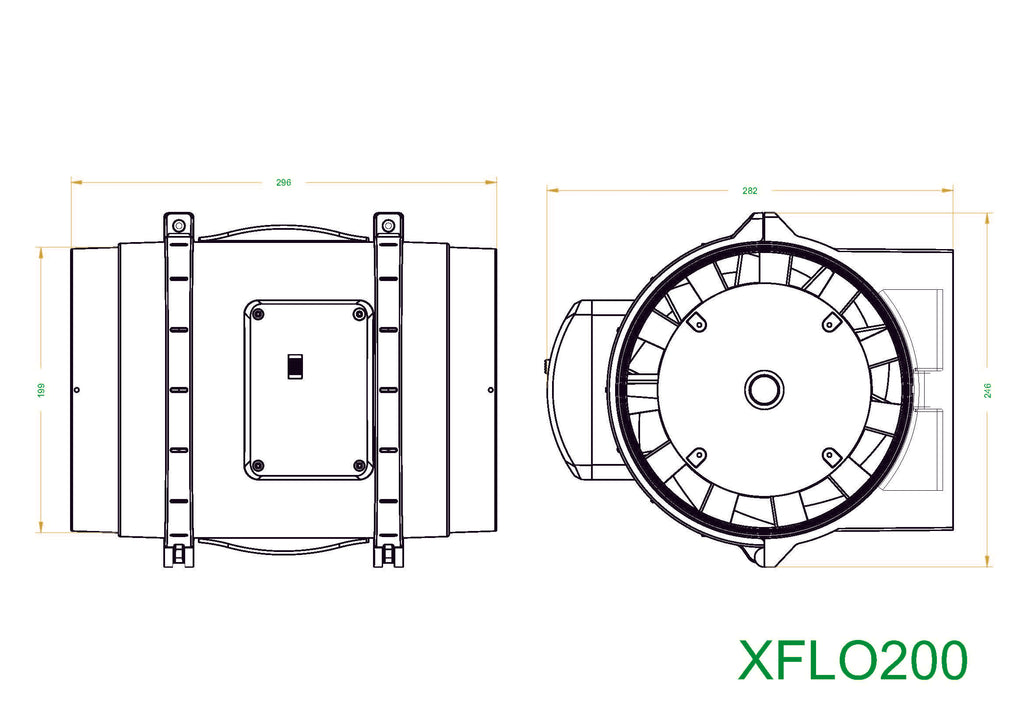

200mm (8") - XFLO200

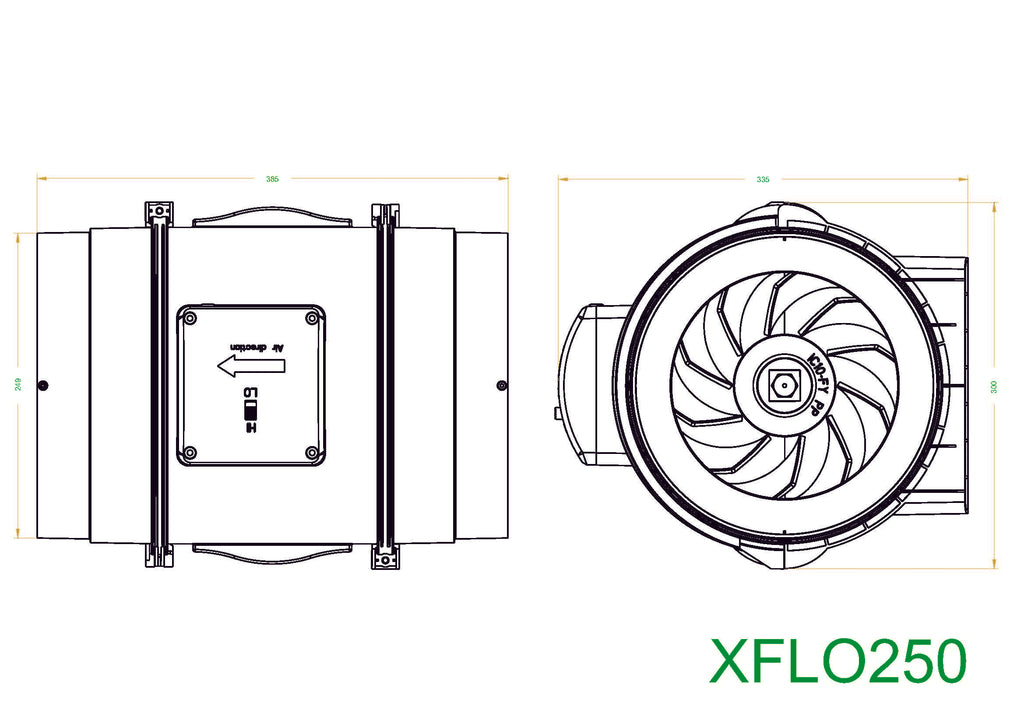

250mm (10") - XFLO250

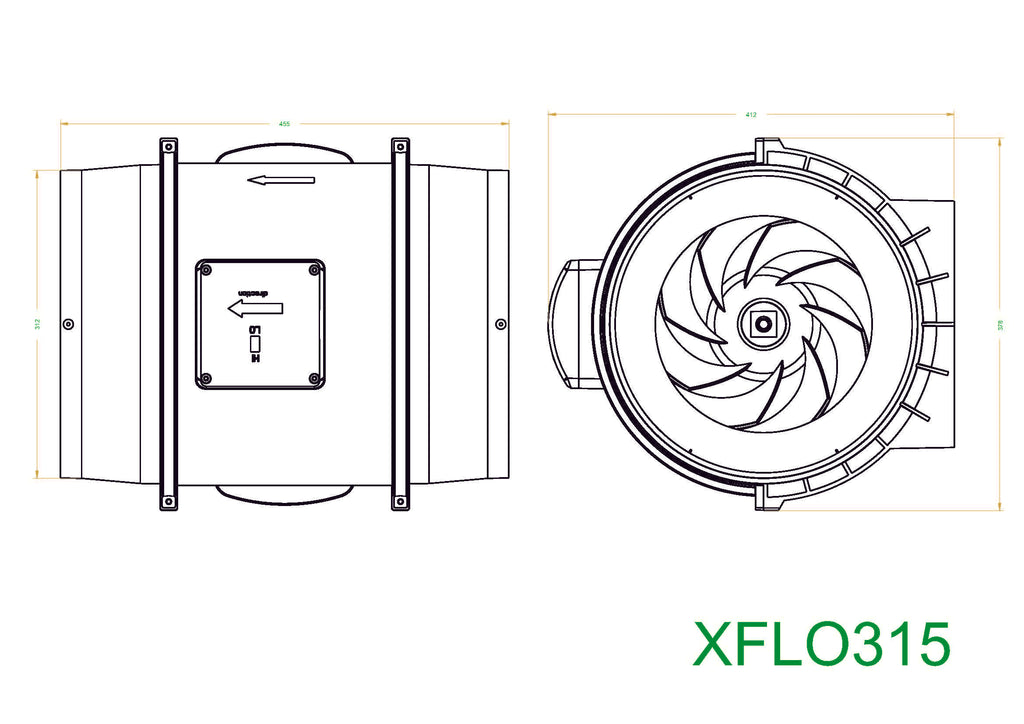

315mm (12") - XFLO315


Timer - T
Standard - S


Wattage
100mm (4") - 24/30w
125mm (5") - 26/33w
150mm (6") - 40/50w
200mm (8") - 100/130w
250mm (10") - 165/225w
315mm (12") - 275/380w


Sound Level dBA
100mm (4") - 35
125mm (5") - 37
150mm (6") - 44
200mm (8") - 48
250mm (10") - 66
315mm (12") - 69
