Inline Fans

Inline Fans

Model: XFLO (Inline Mixed Flow Fan)
Our XFLO range is quiet, powerful and high performance. Mixed Flow fans are less bulky than large in-line centrifugal fans and can be installed in loft spaces or service shafts. This range is specially designed for residential applications and hydroponics. It is also supplied with a mounting bracket for quick and easy installation on wooden joists and panels. XFLO fans are suitable for removing damp moist air, odours and airborne pollutants from bathrooms, en-suites, shower rooms, utilities and Hydroponic Rooms.

Speeds - 2 Speeds
1 Year Warranty


UK Plug - Standard Model Only


Air Flow (Free Air)
100mm (4") - 220m3/hr (61l/s)
125mm (5") - 330m3/hr (92l/s)
150mm (6") - 530m3/hr (147l/s)
200mm (8") - 820m3/hr (228l/s)
250mm (10") - 1405m3/hr (390l/s)
315mm (12") - 2206m3/hr (612l/s)


Sizes/Types

100mm (4") - XFLO100
125mm (5") - XFLO125
150mm (6") - XFLO150
200mm (8") - XFLO200
250mm (10") - XFLO250
315mm (12") - XFLO315


Timer - T
Standard - S


Wattage
100mm (4") - 24/30w
125mm (5") - 26/33w
150mm (6") - 40/50w
200mm (8") - 100/130w
250mm (10") - 165/225w
315mm (12") - 275/380w


Sound Level dBA
100mm (4") - 35
125mm (5") - 37
150mm (6") - 44
200mm (8") - 48
250mm (10") - 66
315mm (12") - 69

Model: SL100TWC (Inline Fan Light Kit)
SF100 Fan is designed for the safe ventilation of bathrooms, toilets and shower rooms, these 100mm (4") in-line extractor fans remove any risk of an electric shock in wet areas as the fan is mounted remotely, all SL100TWC fans come with timer.

Powerful, yet extremely quiet in operation, the extract rate is 100m³/hr (28 ltr/sec).

Available with timer, the fan kits are supplied complete with fan unit, one length of PVC flexible ducting 3m, one internal Grille and one external white wall grille, fixing screws, plugs and straps to secure the duct and the grilles.

The internal light grille comes with a white and chrome bezel that is easily changeable by twisting off.
LED drive is also include to power the 3w LED MR16 12v Bulb

Sizes/Types
100mm (4")
Timer - T
Wattage
100mm (4") - 15w

Air Flow (Free Air)
100mm (4") - 100m3/hr (28l/s)

Sound Level dBA (3m)
100mm (4") - 30



Model: SF (Inline Fan)

The SF range is an inline Axial Fan perfect for small carbon filters or just as a supply/extract fan. This model has a Bracket attached



UK Plug - No



Sizes/Types

100mm (4") - SF100

125mm (5") - SF125

150mm (6") - SF150

Timer - T

Standard - S

Wiring Diagram



Wattage

100mm (4") - 15w

125mm (5") - 20w

150mm (6") - 25w



Air Flow (Free Air)

100mm (4") - 100m3/hr (28l/s)

125mm (5") - 150m3/hr (42l/s)

150mm (6") - 210m3/hr (59l/s)



Sound Level dBA

100mm (4") - 30

125mm (5") - 32

150mm (6") - 35

Model: XPRO (XFLO Pro Inline Mixed Flow Fan)
Our XPRO range is quiet, powerful and high performance. Mixed Flow fans are less bulky than large in-line centrifugal fans and can be installed in loft spaces or service shafts. This range is specially designed for residential applications. It is also supplied with a mounting bracket for quick and easy installation on wooden joists and panels. XPRO fans are suitable for removing damp moist air, odours and airborne pollutants from bathrooms, en-suites, shower rooms and utilities.

Speeds - 2 Speeds
1 Year Warranty (Extra 2 Years if paper work is filled out correctly)


Air Flow (Free Air)
100mm/125mm (4"/5") - (L) 180m3/hr (50l/s) -  (H) 250m3/hr (69l/s)
150mm/160mm (6") - (L) 415m3/hr (115l/s) -  (H) 570m3/hr (158l/s)

Sizes/Types

100mm/125mm (4"/5")
150mm/160mm (6")
Timer - T


Wattage
XPRO100/125 - (L) 23w -  (H) 25w
XPRO150/160 - (L) 42w -  (H) 50w

Sound Level dB(A)
XPRO100/125 - (L) 31-  (H) 40
XPRO150/160 - (L) 40-  (H) 49



Sold Out
Because of the metal casing there the perfect solution for the installation in exhaust ventilation systems in humid premises such as bathrooms, kitchens etc.

A dynamic balanced impeller with backward curved blades balanced in two planes.
Overheating protection with automatic restart.

Maintenance-free ball-bearings used with motors and designed for at least 40000 hours operation.

Sizes/Types

100mm (4") - STUBE100-R2
125mm (5") - STUBE100-R2
150mm (6") - STUBE100-R2
200mm (8") - STUBE100-R2
250mm (10") - STUBE100-R2
315mm (12") - STUBE100-R2
UK Plug - Yes - with wired Controller
Wattage
100mm (4") - 68w
125mm (5") - 70w
150mm (6") - 125w
200mm (8") - 160w
250mm (10") - 165w
315mm (12") - 165w
Air Flow (Free Air)
STUBE100 - 300 m3/h
STUBE125 - 400 m3/h
STUBE150 - 600 m3/h
STUBE200 - 900 m3/h
STUBE250 - 1000 m3/h
STUBE315 - 1500 m3/hr
Sound Level dBA
100mm (4") - 49
125mm (5") - 49
150mm (6") - 49
200mm (8") - 51
250mm (10") - 52
315mm (12") - 53
Model: SI (Inline Fan)
The SI range is a compact inline Axial Fan perfect for small carbon filters or just as a supply/extract fan.
Spigots
The SI Fan has different inlet and outlet spigot diameters to enable attachment to a carbon filter with the outlet side  attaching to your ducting.
UK Plug - EU/UK plug attached
Sound Level dBA
100mm (4") - 35
125mm (5") - 36
150mm (6") - 38

Sizes/Types

100mm (4") - SI100
125mm (5") - SI125
150mm (6") - SI150
Timer - T
Standard - S
Wattage
100mm (4") - 14w
125mm (5") - 18w
150mm (6") - 22w
Air Flow (Free Air)
100mm (4") - 107m3/hr (30l/s)
125mm (5") - 190m3/hr (53l/s)
150mm (6") - 270m3/hr (75l/s)
Model: Proguard DXB Mini with BPI (Sanitization Unit)

Description

Defender DXB Mini (25sq metre coverage) with BPI has been designed and engineered to deliver sanitization that is proven to reduce & eradicate surface and airborne pathogens for high-load environments in greenhouses using the ProGuard Sanitization Technology.

Manual / installation instructions

How does it work

ProGuard technology helps growers proactively eliminate microbial contaminants (used extensively in large commercial facilities where passing stringent testing regulations is a prerequisite to keeping their licence!).

Proguard’s patented process pro-actively sends out powerful sanitisers that seek out and destroy mould spores, mildew and harmful pathogens in the air and on the plants, the lights, the benches, and other surfaces - giving you the 24/7 protection that results in a cleaner room environment and a cleaner product.

Why do grow rooms need an air sanitiser?

An air sanitiser can prevent mildew and moulds that are harmful to your plants.  If you’ve ever dealt with powdery mildew, you know why growers need air sanitation. Since grow rooms tend to have high humidity, they're highly susceptible to powdery mildew and other moulds, plus pathogens that can destroy crops quickly.

In short, powdery mildew can fuck your shit up. Here are a few reasons how they do that:

  • Powdery mildew spores can be carried by the wind, air exhaust and ventilation systems, pets, and even growers and employees. Practically any living organism can transport the fast-spreading mildew.
  • Mildew spores can stay dormant until environmental conditions are just right for them to thrive. Powdery mildew has a 4-7 day post-inoculation window. During that time it’s practically invisible, so it’s hard to know when powdery mildew or other moulds are waiting to appear, reproduce and spread.
  • Powdery mildew is able to depress the photosynthesis process of plants significantly. That means your plants won’t take up nutrients and energy as efficiently for healthy growth.
  • Powdery mildew can affect seedlings, clones, veg plants, and flowering plants.
  • Most fungicidal sprays that may be able to treat powdery mildew, other moulds, and mildews have a detrimental effect on bud quality and safety. Regulations bar the use of many that otherwise would be effective.
  • Crops affected by powdery mildew are harmful to consume. The plants are likely to fail regulatory testing for mould content.

Air sanitisers in grow rooms are an advance that’s been added to best commercial practices. Sanitisers effectively “clean” the air of harmful pathogens and spores for optimal environments.

The most effective indoor air sanitisers, including ProGuard, use UV energy and other technology, transforming moisture molecules in the air into an ionized vapour that can kill pathogens. By contrast, some other air sanitation models emit potentially hazardous gases or chemicals into the air as they claim to be purifying it. However, there is a difference with Proguard.

The ProGuard Difference

Innovative Solutions’ ProGuard systems use a process called Active Sanitization Distribution. It distributes the sanitizing effect into the environment, killing pathogens at their point of origin, both in the air and on surfaces #SeekAndDestroy

The ProGuard™ air sanitiser was designed specifically for commercial grow rooms that are naturally high-density and high-humidity. Through a photocatalytic oxidation process, UV energy and a proprietary catalyst turn air moisture molecules into an ionized, mild form of hydrogen peroxide vapour that actively kills pathogens up to 99.9%, reducing mould and mildew threats. The result is an optimally clean environment that promotes plant health and helps crops pass microbial regulatory testing.

The ProGuard DXM Mini has been designed for grow rooms and dry rooms up to 250 square feet (circa 25 square metres) the DMX Mini can also benefit other smaller spaces, such as hallways. The power draw is a meagre 14 watts.

When greenhouse facilities look at the cost of losing an entire crop versus the cost of a system that can prevent the loss, the decision is easy.

DXB Mini with BPI is easy to install and maintain as it operates 24/7. ProGuard Sanitization has been tested and validated by reputable labs across the world to ensure safety and effectiveness in reducing mould, mildew, bacteria, viruses, voc’s and other dangerous pathogens.

Product Specifications
• Weight of Unit: 2.75 lbs.
• Dimensions (H x L x D): 10” x 10” x 4”
• Electrical Input: 100-240V – 50/60Hz
• Electrical Output: 12VDC 3A
• Power Consumption: Running 14W – 22W
• Warranty: 2 Years

Model: STUBE P (Plastic Centrifugal Inline Tube Fan)
Designed for inline mounting into any point of the ventilation system and at any angle. For supply and exhaust ventilation, The fan casing is made of high quality durable plastic.
Single-phase ball bearing motor equipped with a centrifugal impeller with backward curved blades. It is implemented with overheat protection with automatic restart.
Wall and ceiling mounting is carried out using the bracket
Can be speed controlled using a thyristor or transformer speed regulator.
IP44

Sizes/Types

100mm (4") - STUBE100P
125mm (5") - STUBE100P
150mm (6") - STUBE100P
200mm (8") - STUBE100P
250mm (10") - STUBE100P
315mm (12") - STUBE100P
UK Plug - No
IEC Attachment - Yes (UK Plug lead not provided)
Wattage
100mm (4") - 52w
125mm (5") - 52w
150mm (6") - 85w
200mm (8") - 135w
250mm (10") - 210w
315mm (12") - 225w
Air Flow (Free Air)
STUBE100 - 265 m3/h
STUBE125 - 370 m3/h
STUBE150 - 680 m3/h
STUBE200 - 900 m3/h
STUBE250 - 1100 m3/h
STUBE315 - 1700 m3/hr
Sound Level dBA
100mm (4") - 52
125mm (5") - 51
150mm (6") - 57
200mm (8") - 55
250mm (10") - 53
315mm (12") - 53

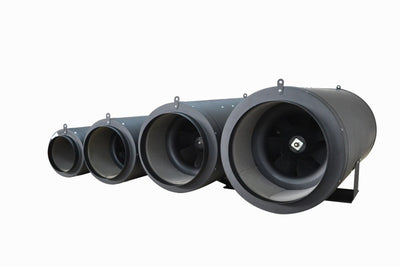

Model: SW-SILF  (Acoustic AC/EC Inline Fan)

Swiftair single speed or variable (EC Only) sound insulated fans are designed and constructed to minimalize sound output at range which makes them the ideal grow room inline fans for where noise sensitivity is a priority.

Airflow capabilities:

Powerful with engineered high-quality motors run extremely quiet while moving a very large amount of air through either a 150mm, 200mm, 250mm and 315mm outlet. The outer casing functions as a silencer and has a thick layer of insulating foam-lining around its inside, providing outstanding sound protection.

Swiftair fans can be suspended/ installed in locations that may be unsuitable to consider other, heavier, cabinet/box type acoustic fans.

The speed controller (EC Only) offers the ability to reduce air-flow levels when it may be preferable, providing added flexibility and saving money on additional fan-controller units!
These fans are highly reliable, durable and overheating is prevented by a thermal switch, so peace of mind can be maintained at all times.



Sizes/Types

150mm (6")

200mm (8")

250mm (10")

315mm (12")



AC - UK Plug Attached

EC - Speed Controller and UK Plug



Wattage



200mm (8") - 120w AC

250mm (10") - 153w AC

315mm (12") - 334w AC



150mm (6") - 41w EC

200mm (8") - 120w EC

250mm (10") - 153w EC

315mm (12") - 334w EC



Air Flow (Free Air)



150mm (6") - 550m3/hr (150 l/s)

200mm (8") - 1000m3/hr (277 l/s)

250mm (10") - 1660m3/hr (461 l/s)

315mm (12") - 2760m3/hr (766 l/s)



To calculate how big a fan you will require:

Simply multiply the length x width x height of your grow room in metres which will give you the cubic capacity of your room and then multiply that value by either 30 or 60 which is the minimum and maximum air changes required per hour for optimum ventilation in your grow room.

For example : A grow room measuring 2mtrs x 2mtrs x 2mtrs = 8mtrs cubed x30 air changes an hour = 240mtr cubed per hour will need to be ventilated ..as a rule we recommend buying a slightly larger capacity fan than you need, to allow for summer increases in temperature and or using a Carbon filter.



Model: QBF (Quiet Box Fan)
Quiet Box Fan (QBF) fan design allows for supply and extract ventilation for areas/rooms with high requirements to low noise levels and limited mounting space. Units can be installed above ceilings or in loft spaces. Suitable for round ducts. The centrifugal impeller with back-curved blades is powered by means of 2-pole asynchronous motor with external rotor. The motors are equipped with built-in thermal overheating protection with automatic restart.

Sizes/Types

100mm (4") - QBF100
125mm (5") - QBF125
150mm (6") - QBF150
200mm (8") - QBF200
250mm (10") - QBF250
315mm (12") - QBF315
Standard - S
UK Plug - Standard Model Only
Wattage
100mm (4") - 63w
125mm (5") - 63w
150mm (6") - 112w
200mm (8") - 170w
250mm (10") - 173w
315mm (12") - 221w
Air Flow (Free Air)
100mm (4") - 240m3/hr (67l/s)
125mm (5") - 330m3/hr (92l/s)
150mm (6") - 420m3/hr (117l/s)
200mm (8") - 730m3/hr (203l/s)
250mm (10") - 1300m3/hr (362l/s)
315mm (12") - 2150m3/hr (598l/s)
Sound Level dBA
100mm (4") - 33
125mm (5") - 35
150mm (6") - 36
200mm (8") - 38
250mm (10") - 41
315mm (12") - 43
Model: ST (Centrifugal Inline Fan)
The ST range is an inline Centrifugal Fan with attached bracket which can be used for supply or extraction.
This fan is perfect for longer duct runs and carbon filters.
UK Plug - Standard Model Only

Sizes/Types

100mm (4") - ST100
Standard - S
Wattage
100mm (4") - 20w
Air Flow (Free Air)
100mm (4") - 110m3/hr (30l/s)
Sound Level dBA
100mm (4") - 35
